plot_heatmap — plot_heatmap • eepR

Plot an affine/adjacency matrix (e.g., correlation matrix) with a BIDS-format lookup table, grouping bands, and grid lines.

Usage

plot_heatmap(
  affine_matrix,
  lut,
  group_var = "network",
  border_width = 10,
  scale_fill_type = c("gradient2", "viridis", "distiller"),
  scale_fill_limits = NULL,
  scale_fill_low = "blue",
  scale_fill_mid = "white",
  scale_fill_high = "red",
  scale_fill_midpoint = 0,
  scale_fill_palette = NULL,
  na_val = NULL,
  scale_fill_na_color = "grey50",
  diagonal_to_na = FALSE,
  title = NULL,
  subtitle = NULL,
  x_label = NULL,
  y_label = NULL,
  x_breaks = NULL,
  y_breaks = NULL,
  out_path = NULL,
  width = 7,
  height = 6,
  units = "in",
  dpi = 300,
  match_by_name = TRUE,
  diamond = FALSE,
  diamond_direction = c("vertical", "horizontal"),
  grid_color = "black",
  grid_linewidth = 0.5,
  legend_title = "Value",
  group_legend_title = group_var
)

Arguments

affine_matrix: A square matrix, data.frame, or a path to a CSV/TSV file containing the matrix. Can be with or without row and column names.
lut: A data.frame or a path to a BIDS-format TSV file containing the lookup table. Must contain 'index', 'name', and 'color' (hex values) columns, and the grouping variable column.
group_var: Character. Name of the column in lut to use as the grouping variable. Default is "network".
border_width: Integer. Width (in plot units/pixels) of the grouping bands around the plot. Set to 0 to omit. Default is 10.
scale_fill_type: Character. Type of color scale to use: "gradient2" (diverging), "viridis", or "distiller". Default is "gradient2".
scale_fill_limits: Numeric vector of length 2. Minimum and maximum values for the colorscale. Default is NULL (auto-calculated).
scale_fill_low: Character. Color for low values in a "gradient2" scale. Default is "blue".
scale_fill_mid: Character. Color for middle values in a "gradient2" scale. Default is "white".
scale_fill_high: Character. Color for high values in a "gradient2" scale. Default is "red".
scale_fill_midpoint: Numeric. Midpoint for a "gradient2" scale. Default is 0.
scale_fill_palette: Character. Name of the palette/option to use for "viridis" or "distiller" scale. Default is NULL.
na_val: Numeric. Value(s) in the matrix to replace with NA. Default is NULL.
scale_fill_na_color: Character. Color to use for NA values in the matrix. Default is "grey50".
diagonal_to_na: Logical. If TRUE, sets the diagonal elements of the matrix to NA. Default is FALSE.
title: Character. Title of the plot. Default is NULL.
subtitle: Character. Subtitle of the plot. Default is NULL.
x_label: Character. Label for the x-axis. Default is NULL.
y_label: Character. Label for the y-axis. Default is NULL.
x_breaks: Numeric vector. Breaks for the x-axis. Default is NULL (defaults to c(1, N)).
y_breaks: Numeric vector. Breaks for the y-axis. Default is NULL (defaults to c(1, N)).
out_path: Character. Optional path to save the generated plot. If NULL, the plot is not saved.
width: Numeric. Width of the output image in units. Default is 7.
height: Numeric. Height of the output image in units. Default is 6.
units: Character. Units for output image size ("in", "cm", "mm", or "px"). Default is "in".
dpi: Numeric. Resolution of the output image in dots per inch. Default is 300.
match_by_name: Logical. If TRUE, attempts to align and reorder matrix rows/columns to match the lookup table using colnames/rownames matching. Default is TRUE.
diamond: Logical. If TRUE, the heatmap is rotated 45 degrees to display as a diamond shape. Default is FALSE.
diamond_direction: Character. Direction of the main diagonal in diamond view: "vertical" (default) or "horizontal".
grid_color: Character. Color of the grid lines. Default is "black".
grid_linewidth: Numeric. Width of the grid lines. Default is 0.5.
legend_title: Character. Title of the heatmap color legend. Default is "Value".
group_legend_title: Character. Title of the grouping band legend. Default matches group_var.

Value

A ggplot object.

Examples

# Simulate a 400-node lookup table matching Schaefer 400 with Yeo 7 networks
networks <- c("Visual", "Somatomotor", "Dorsal Attention", "Ventral Attention",
              "Limbic", "Frontoparietal", "Default")
net_colors <- c("#781286", "#4682B4", "#00760E", "#C43A4D",
                "#FFFFC4", "#E69422", "#CD3E4E")
net_rep <- rep(networks, each = 57, length.out = 400)
color_rep <- rep(net_colors, each = 57, length.out = 400)

sim_lut <- data.frame(
  index = 1:400,
  name = paste0("parcel", 1:400),
  color = color_rep,
  network = net_rep,
  stringsAsFactors = FALSE
)

# Simulate a 400x400 symmetric correlation matrix with network block structures
set.seed(42)
sim_matrix <- matrix(runif(400 * 400, min = -0.2, max = 0.2), nrow = 400, ncol = 400)
sim_matrix <- (sim_matrix + t(sim_matrix)) / 2
for (net in networks) {
  idx <- which(sim_lut$network == net)
  sim_matrix[idx, idx] <- sim_matrix[idx, idx] + runif(length(idx)^2, min = 0.3, max = 0.7)
}
diag(sim_matrix) <- 1.0
rownames(sim_matrix) <- sim_lut$name
colnames(sim_matrix) <- sim_lut$name

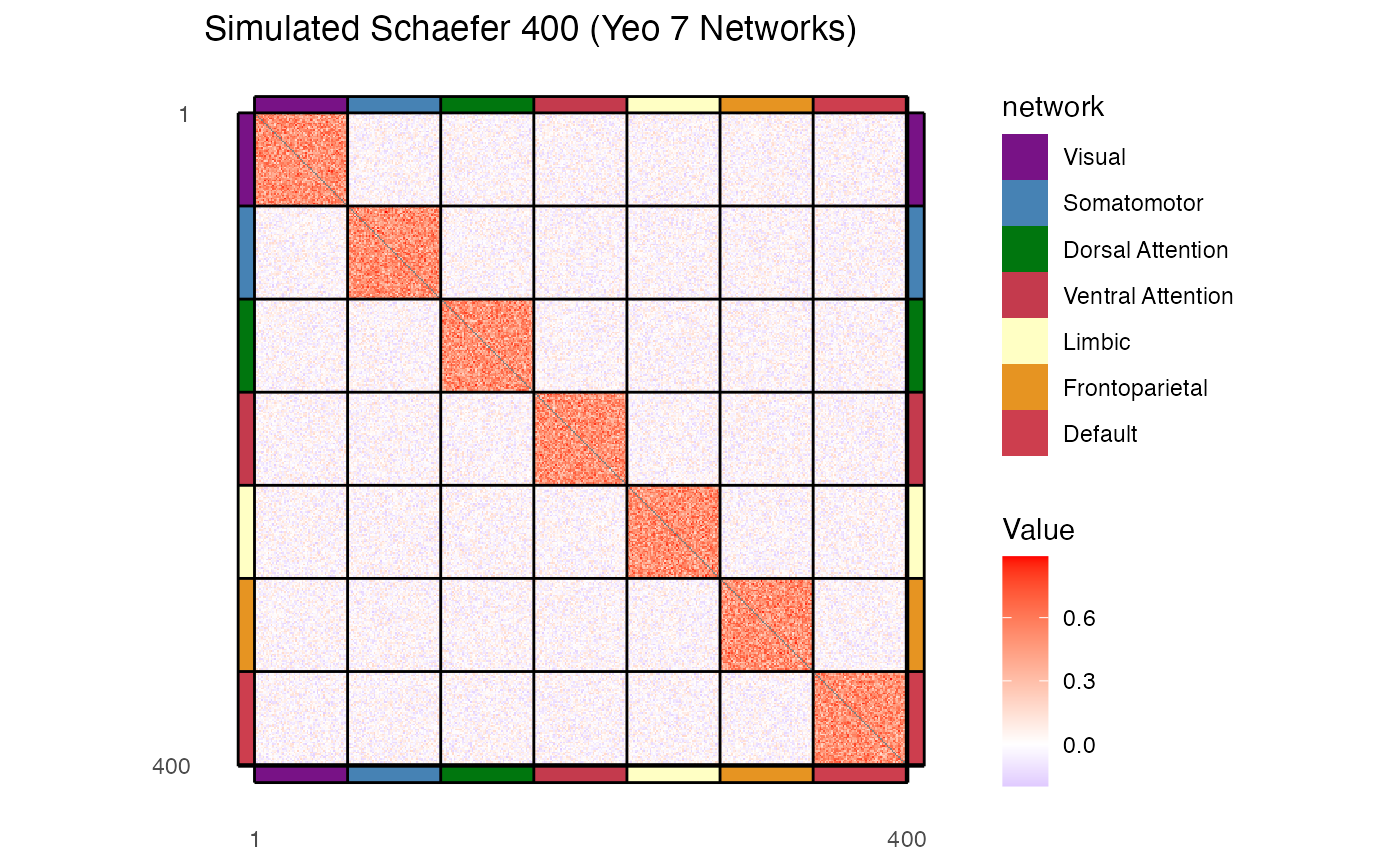

# Plot the heatmap
p <- plot_heatmap(
  affine_matrix = sim_matrix,
  lut = sim_lut,
  group_var = "network",
  border_width = 10,
  diagonal_to_na = TRUE,
  title = "Simulated Schaefer 400 (Yeo 7 Networks)"
)
print(p)

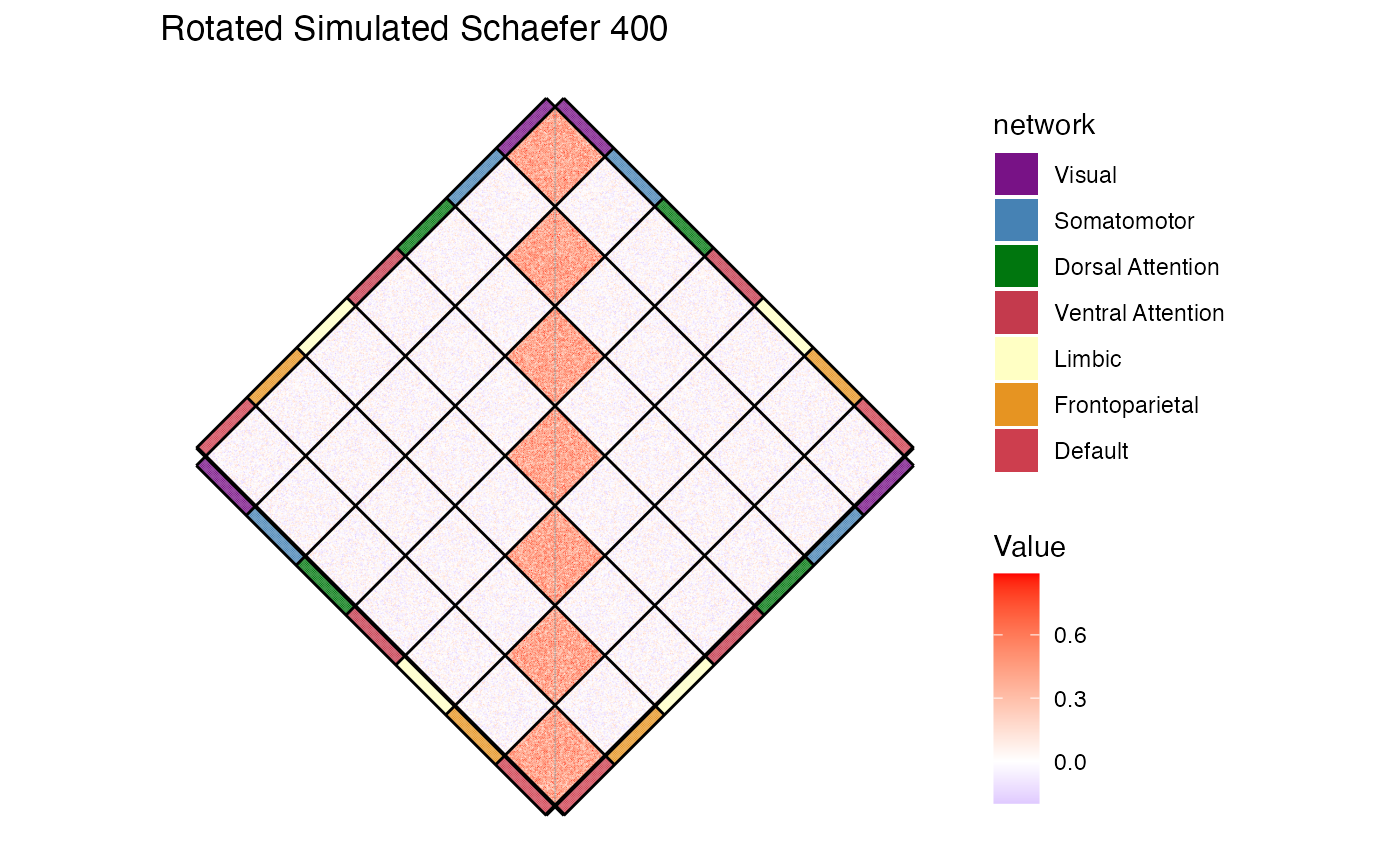

# Plot the same heatmap rotated to be a diamond shape
p_diamond <- plot_heatmap(
  affine_matrix = sim_matrix,
  lut = sim_lut,
  group_var = "network",
  border_width = 10,
  diagonal_to_na = TRUE,
  diamond = TRUE,
  title = "Rotated Simulated Schaefer 400"
)
print(p_diamond)
